• Powered by 14.8 Volts, 4 Cells, Li-ion Battery pack 4200 mA capacity, that can withstand a 2 A discharge for
up to 2 hrs. (maximum duration depends on output voltage).

• External charger provided: Input: 100-240 VAC- 50/60 Hz 1.0 A /// Output: 16.8 Volts DC, 1.5 Amps.

• Maximum 25 V output voltage, essential when using temporary anode beds.

• High/Low Function for output voltage to optimize battery yield. Combines seamlessly with ICS 3 for On/Off
studies or DCVG surveys.

• Optional connection to external DC source (vehicle battery) to extend survey time or battery charge (for
example, if the batteries were not fully recharged).

• Adjustable output voltage with 10-turn precision potentiometer for maximum adjustment precision.
Shunt-easy read (just multiply millivolts x 10 to convert to milliamperes).

• Small and portable. (exterior dimensions: 4” x 7” x 81/2” approximately).

• No need for 3rd party calibration: Panel volt/amp meter to be used as reference.

All final measurements
should be carried out with instrument calibrated on Shunt (Current) and Output (Voltage).

• Input voltage readings can also be taken by the voltmeter (internal or external battery).

• Wide external source voltage range: from 10 V up to 30 V.

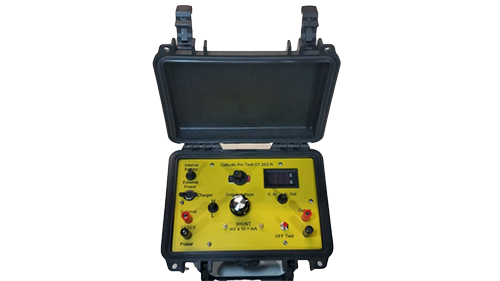

• Safeguarded by a sturdy PELICAN™ 1120 case providing outstanding transport protection against blows,
